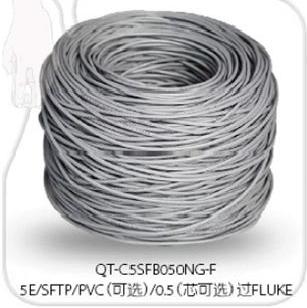

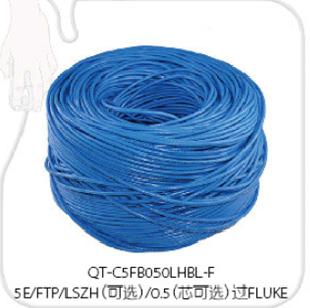

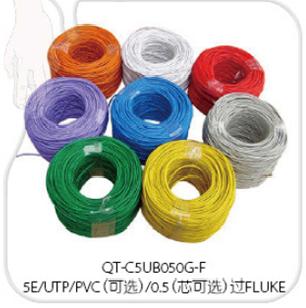

   Cat 5e Lan Cable

Cat 5e Lan Cable






Application:

Mainly uses in the building correspondence synthesis wiring system the work area correspondence leading-out terminal and between the connection distribution frame wiring, as well as the housing synthesis wiring system's user correspondence leading-out terminal arrives at place of exile between coil's wiring

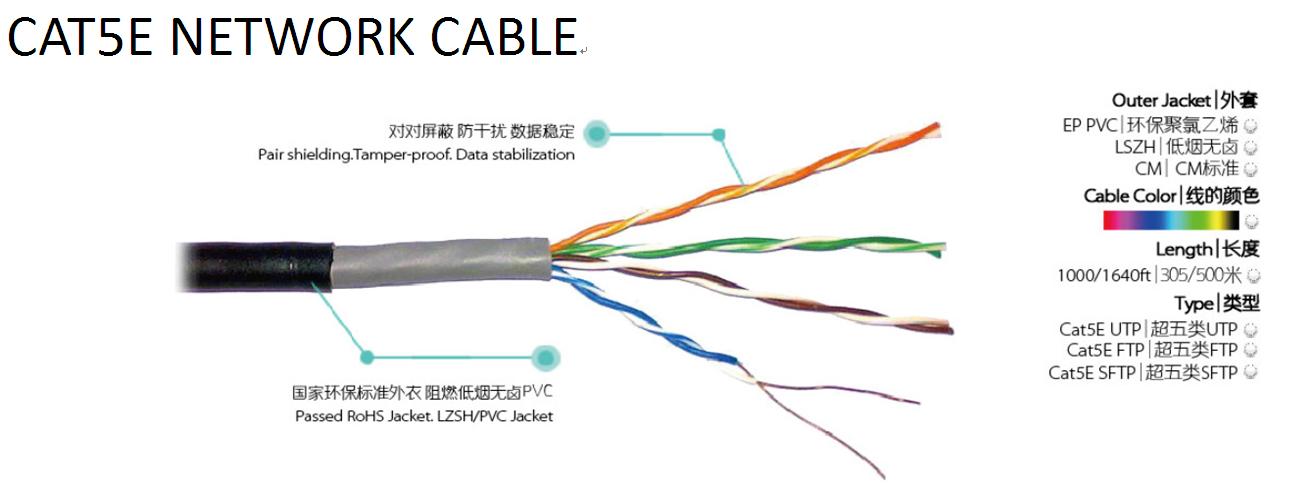

Structure of FTP Cat 5e:





Product Details:


Model                                           cable cat5e UTP/FTP/SFTP

Conductor Size

24/26 AWG  0.51/0.50/0.48/0.45/0.40/0.38mm or 7*0.2/7*0.18/7*0.16/7*0.12mm are optional

Conductor Material BC/CU/CCA/CCAG / 4CCA+4CCS 4CU+4CCA
Number Of Conductor 4Pairs, 8cores
Shield UTP(unsheild)  FTP(single sheild)  SFTP (double sheild)
PVC Jacket Color As client's requests.
Jaeket Material Common PVC /New PVC /ROHS/ LSZH / Outdoor
Marking On Jacket On your request (Print your brand)
Rip Cord Yes
Waterblock Tape Yes
Package detail 305m/boxes,2boxes/ctn,or as the customers requirments.
Delivery detail 7-10 days after deposit received


Electronic Performance


Frequency (MHz)

RL(dB)

Attenuation (dB/100M)

Next Worst Pair

(dB)

Next Power Sum (dB)

Elfext worst pair (dB)

Nominal Velocity Propagation

0.772

16.7

1.8

64.0

64.0

63.0

0.65

1.0

17.0

2.0

62.3

62.3

6.08

4.0

18.8

4.1

53.3

53.3

48.7

8.0

19.7

5.8

48.8

48.8

42.7

10.0

20.0

6.5

47.3

47.3

40.8

16.0

20.0

8.2

44.3

44.3

36.7

     20.0

20.0

9.3

42.8

42.8

34.7

25.0

19.3

10.4

41.3

41.3

32.8

     31.25

18.6

11.7

39.9

39.9

30.9

62.5

16.5

17.0

35.4

35.4

24.8

100

15.1

22.0

32.3

32.3

20.8


Our Packing:


OEM service is offered, welcome your own box design

1) Packing :305m/boxes,2boxes/ctn,or as the customers requirments.
    Other lengths available according to client's request.
2) Carton box, OEM Box
3) Other packing available according to client's request.
